034 Motorsports Dynamic+ Lowering Springs for Audi RS3 2023-2025, 1" Front, 0.75" Rear

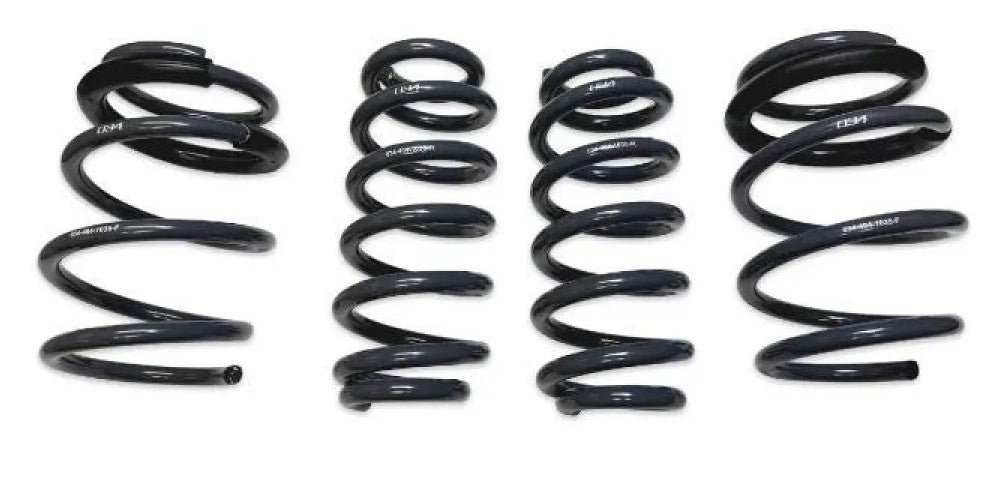

034 Motorsports Dynamic+ Lowering Springs (Part No. 034-404-1035)

The 034 Motorsports Dynamic+ Lowering Springs are meticulously engineered for the Audi RS3 8Y equipped with Audi Magnetic Ride. These springs are designed to enhance handling performance while maintaining a high level of ride comfort, making them an ideal upgrade for those looking to improve their vehicle's dynamics without compromising on daily drivability.

Performance and Design

Each set of Dynamic+ Lowering Springs is manufactured in the USA at an ISO 9001 certified facility, ensuring they meet rigorous quality standards. The springs undergo thorough testing on both street and track conditions, allowing for precise tuning that caters to the needs of Audi RS3 enthusiasts. The result is a product that provides an aggressive stance while delivering OEM+ comfort levels.

Technical Insights

The design of the Dynamic+ Lowering Springs challenges the common misconception that lowering springs are simply shorter versions of stock springs. Instead, these springs maintain the same overall length as the OEM components, but with coils that are strategically positioned closer together. This unique design allows for a lowered ride height through a process known as "stacking" during suspension compression. When the vehicle is under load, the coils compress and stack, resulting in a lower center of gravity.

To mitigate potential noise generated by coil stacking, 034 Motorsports includes Dynamic+ Coil Spring Sleeves with the springs. These sleeves are pre-installed in the required locations and help dampen noise, ensuring a smooth ride experience.

Specifications

• Ride Height Adjustment:
  • Front: Approximately 25mm (1.0") Lower
  • Rear: Approximately 20mm (0.75") Lower
• Spring Rates:
  • Front: 350.0 lb/in
  • Rear: 450.0 lb/in
• Stock Spring Rates (for reference):
  • With Mag-Ride: Front 333.8 lb/in, Rear 367.3 lb/in
  • Without Mag-Ride: Front 326.6 lb/in, Rear 404.0 lb/in

Key Features

• Improved handling performance and chassis dynamics
• Enhanced ride quality with reduced body roll and understeer
• Coil Spring Sleeves included for noise reduction
• Compatible with Audi Magnetic Ride suspension
• Lightweight, high-strength construction with shot peened and powder coated finish

Fitment

• Audi RS3 8Y 2.5 TFSI (2023+)
